UNIVERSAL SOLUTION
LEFG 206-104 TDT
Armor Bearing Unit
Application: Universal Solution
![](img/products/LEFG-206-104-TDT.png)
![](img/image.png)
3D view
![](img/3D/LEFG-206-104-TDT.png)
d | Bore diameter | 31.75 | mm |
d | Bore diameter | 1 1/4 | inch |
A1 | Total housing width | 31 | mm |
A2 | Housing flange thickness | 13 | mm |
J | Distance between the holes | 83 | mm |
L | Total length | 108 | mm |
N | Hole diameter | 16 | mm |
A | Overall width | 40.2 | mm |
kg | Mass | 1.1 | kg |
Cdyn | Dynamic load rating | 19.5 | kN |
Co | Static load rating | 11.3 | kN |
Pu | Fatigue load limit | 0.475 | kN |

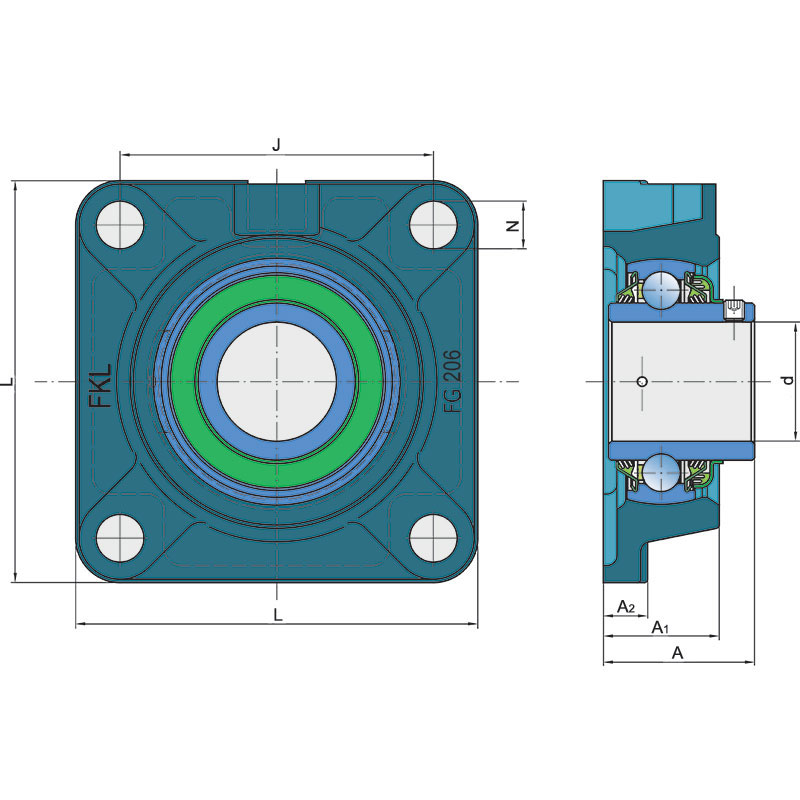

Tehnical Drawing
![](img/Drawings/LEFG-206-104-TDT.jpg)
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
![](img/seal_hub/LEFG.jpg?16032024)
