HARVESTER
SLQ 47x17.6x20.9-2D
Ball bearing
Application: Harvester
3D view
| a | Size of the hexagon | 17.653 | mm |
| D | Outside diameter | 47 | mm |
| B | Width inner ring | 20.955 | mm |
| C | Width outer ring | 14 | mm |
| α | Contact angle | 25 | ° |
| kg | Mass | 0.13 | kg |
| Cdyn | Dynamic load rating | 12.8 | kN |
| Co | Static load rating | 6.2 | kN |
| Pu | Fatigue load limit | 0.26 | kN |
Tehnical Drawing
Sealing
D SEAL / D SEAL (2D)
2-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

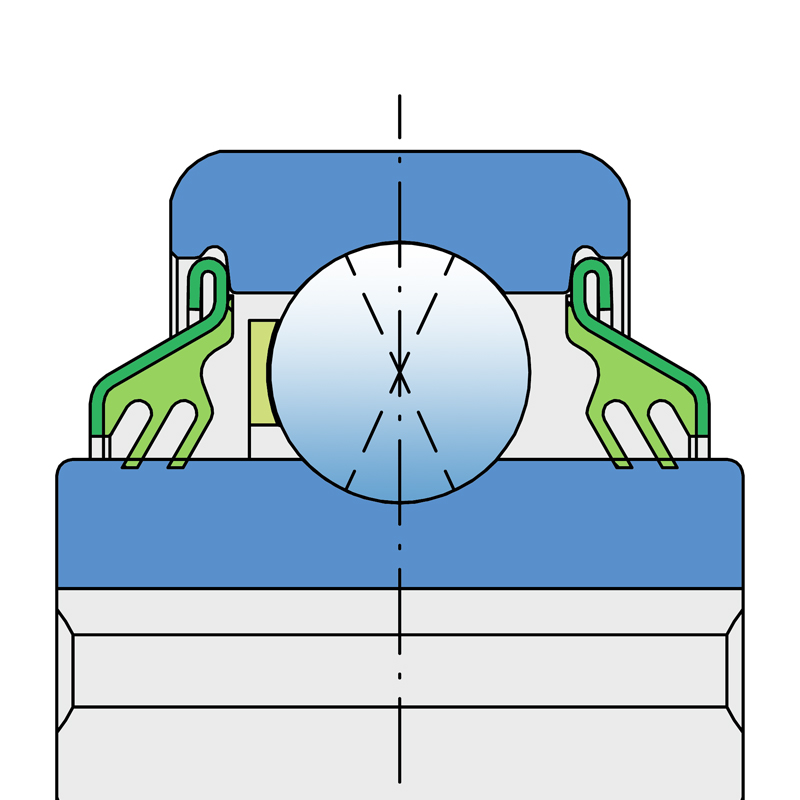

Sealing Drawing
