PACKER ROLLER
LSNR 207 TBS
Bearing Unit
Application: Packer Roller

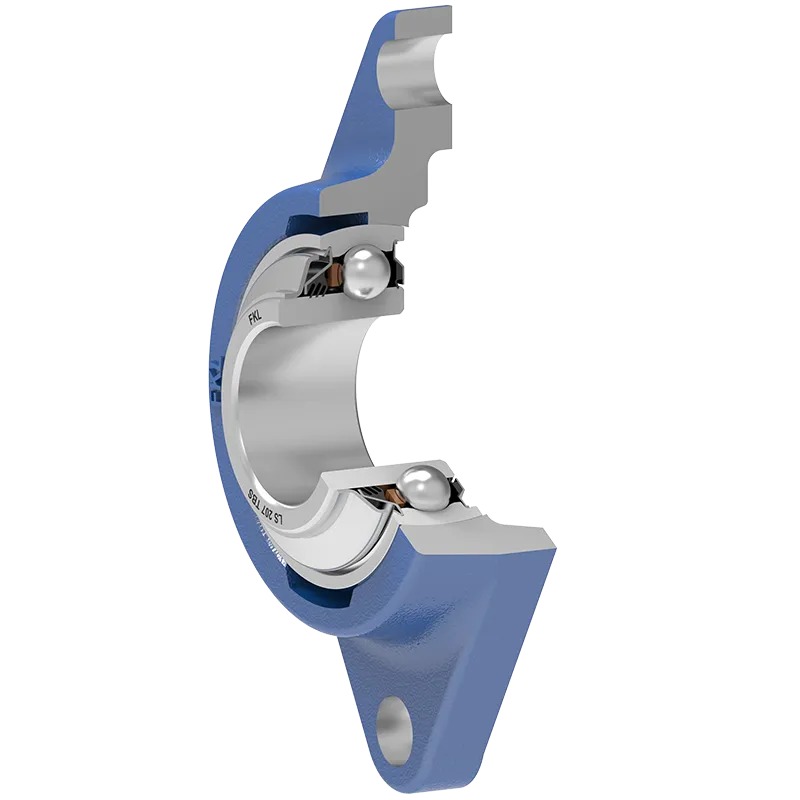

3D view
| d | Bore diameter | 35 | mm |
| H | Housing height | 155 | mm |
| L | Total length | 93 | mm |
| J | Pitch circle diameter | 130 | mm |
| A | Overall width | 40 | mm |
| A1 | Total housing width | 31 | mm |
| A2 | Housing flange thickness | 13 | mm |
| B | Width inner ring | 28.3 | mm |
| N | Hole diameter | 14 | mm |
| kg | Mass | 1.05 | kg |
| Co | Static load rating | 15.3 | kN |
| Cdyn | Dynamic load rating | 25.5 | kN |
| Pu | Fatigue load limit | 1.071 | kN |
Tehnical Drawing
Sealing
S SEAL / T SEAL+METAL FLINGER RING
S seal on the base side and 3-lip seal with Metal flinger ring on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The metal flinger ring protects the seal from mechanical damage.
Sealing Drawing
