PACKER ROLLER
LSNR 205 2T
Bearing Unit
Application: Packer Roller

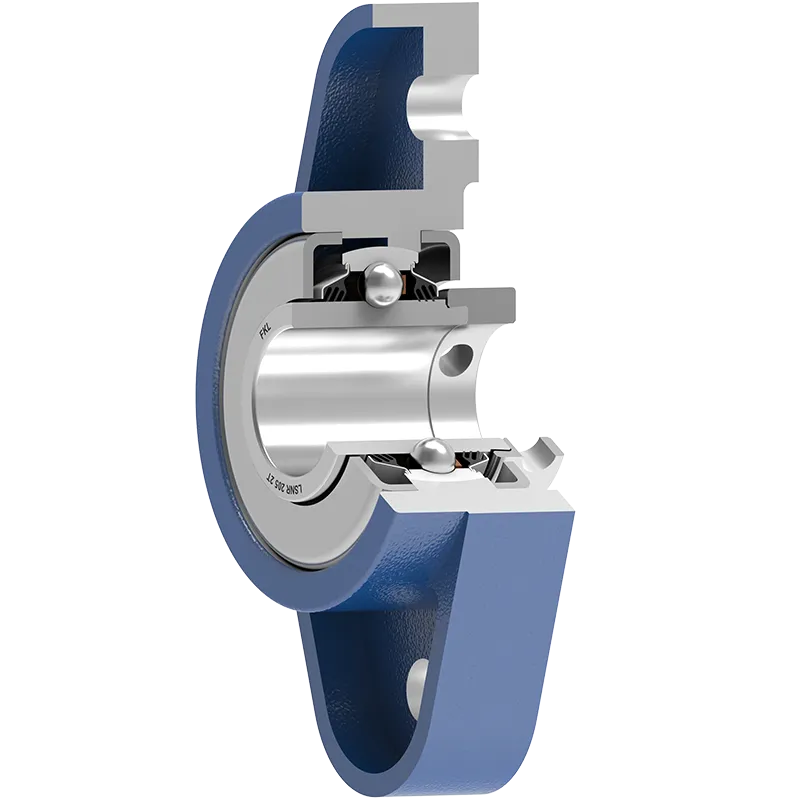

3D view
| d | Bore diameter | 25 | mm |
| H | Housing height | 135 | mm |
| L | Total length | 71 | mm |
| J | Distance between the holes | 99 | mm |
| A | Overall width | 35 | mm |
| A2 | Housing flange thickness | 21 | mm |
| B | Width inner ring | 34.8 | mm |
| N | Hole diameter | 11 | mm |
| kg | Mass | 0.91 | kg |
| Cdyn | Dynamic load rating | 14 | kN |
| Co | Static load rating | 7.8 | kN |
| Pu | Fatigue load limit | 0.328 | kN |
Tehnical Drawing
Sealing
METAL COVER RING+T SEAL / T SEAL+METAL COVER RING
3-lip seal on the base side and 3-lip seal with Metal cover ring on the front side which is exposed to contaminants.
The 3-lip seal on the both side protects the bearing from contaminants. The Metal cover ring protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
Sealing Drawing
