PACKER ROLLER
LSNN 208 TDT.H.T*K
Bearing Unit
Application: Cultivator, disc seeders and tine seeders

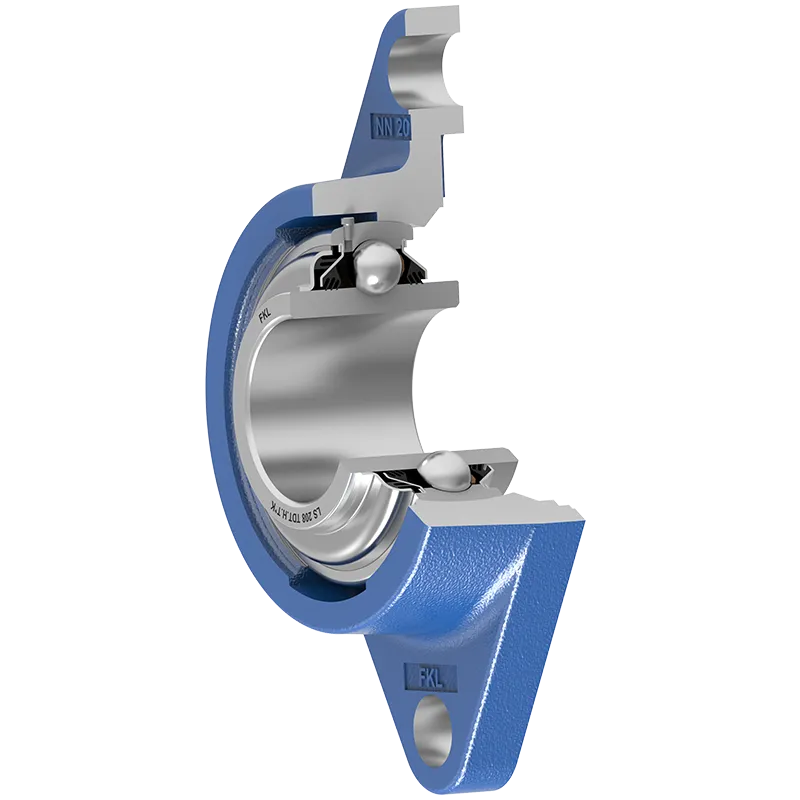

3D view
| d | Bore diameter | 40 | mm |
| H | Housing height | 172 | mm |
| J | Distance between the holes | 144 | mm |
| L | Diameter of housings | 102 | mm |
| A | Overall width | 51.2 | mm |
| A1 | Total housing width | 38.5 | mm |
| A2 | Housing flange thickness | 14 | mm |
| B | Width inner ring | 43.2 | mm |
| N | Hole diameter | 16 | mm |
| kg | Mass | 1.78 | kg |
| Cdyn | Dynamic load rating | 30.7 | kN |
| Co | Static load rating | 19 | kN |
| Pu | Fatigue load limit | 0.798 | kN |
Tehnical Drawing
Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
Sealing Drawing
