PACKER ROLLER
LSGR 205 FS
Bearing Unit
Application: Packer Roller

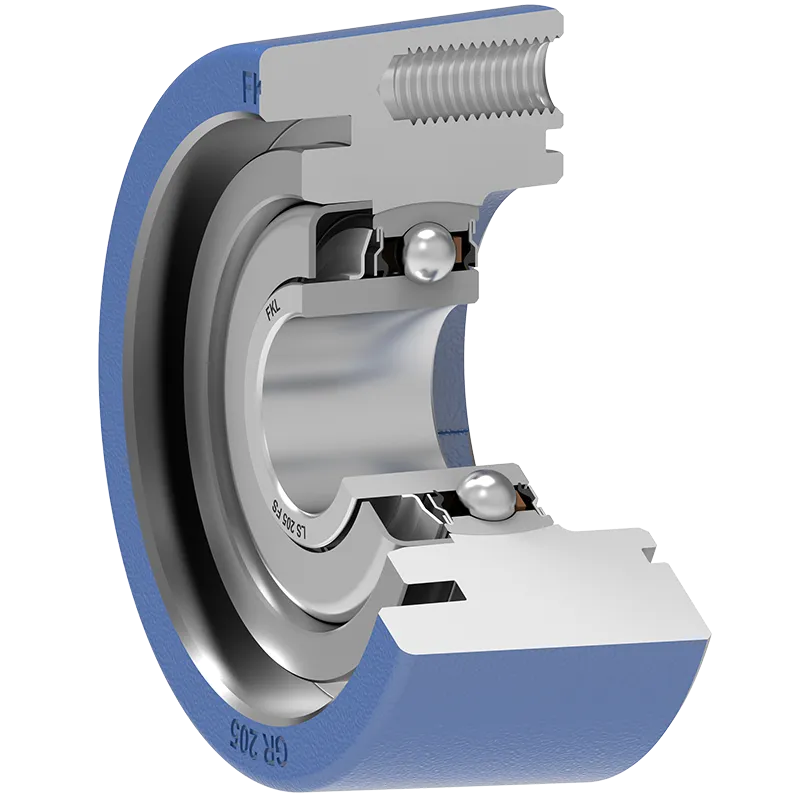

3D view
| d | Bore diameter | 25 | mm |
| D | Outside diameter | 99 | mm |
| J | Pitch circle diameter | 82 | mm |
| H/T | Hole/Thread | M10 | mm |
| A | Overall width | 43 | mm |
| B | Width inner ring | 25 | mm |
| E | Distance from housing flange to bearing face | 12 | mm |
| kg | Mass | 1.55 | kg |
| Cdyn | Dynamic load rating | 14 | kN |
| Co | Static load rating | 7.8 | kN |
| Pu | Fatigue load limit | 0.328 | kN |
Tehnical Drawing
Sealing
METAL COVER RING+METAL FLINGER RING+S SEAL / S SEAL
S seal on the base side and S seal with Metal flinger ring and Metal cover ring on the front side which is exposed to contaminants.
The Metal cover ring protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
Sealing Drawing
