SEEDING MACHINE
SL3 5203 2T
Ball bearing
Application: Seeding Machine

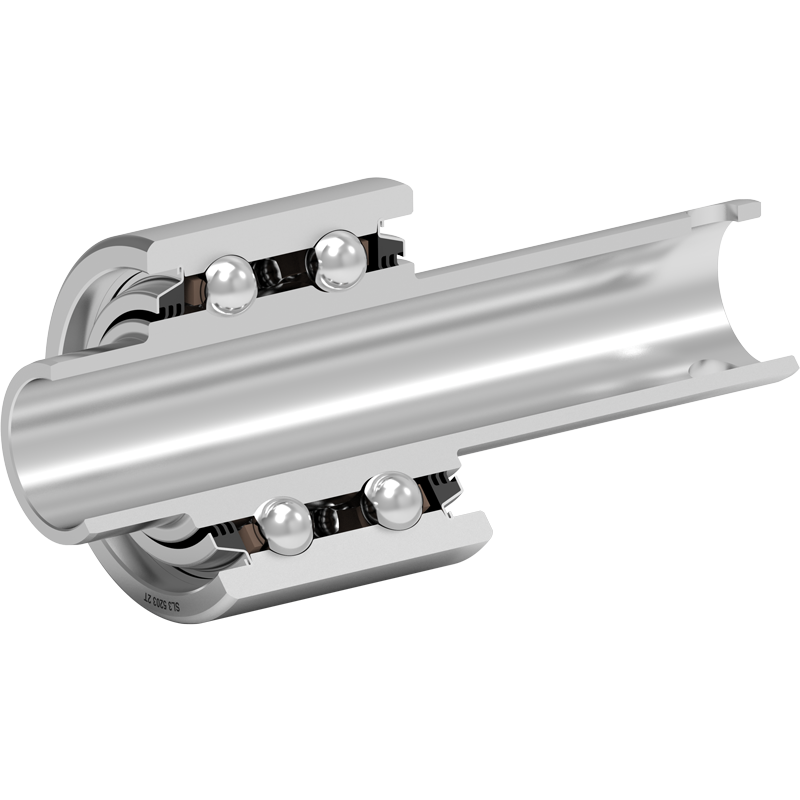

3D view
| d | Bore diameter | 16.256 | mm |
| d1 | Outer diameter inner ring | 20 | mm |
| D | Outside diameter | 42 | mm |
| B | Width inner ring | 91 | mm |
| C | Width outer ring | 34 | mm |
| H | Hole diameter | 6 | mm |
| E | Hole center line distance to the side face of the inner ring | 6 | mm |
| A | Length of the inner ring extension | 44.5 | mm |
| α | Contact angle | 30 | ° |
| kg | Mass | 0.263 | kg |
| Cdyn | Dynamic load rating | 14.21 | kN |
| Co | Static load rating | 8.8 | kN |
| Pu | Fatigue load limit | 0.3696 | kN |

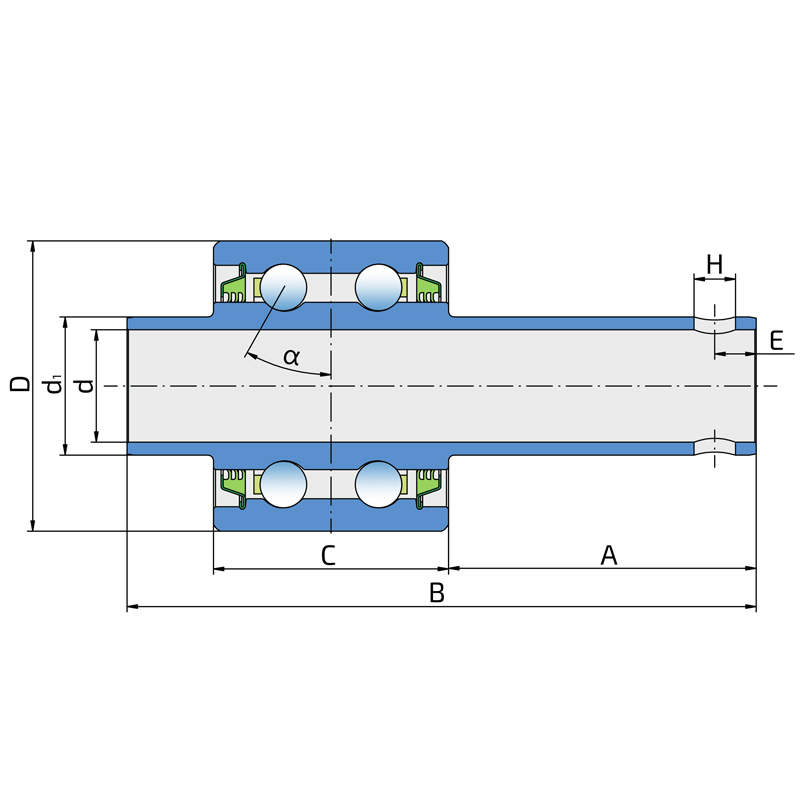

Technical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on both sides of the bearing provides equal protection against contamination. Recommended for applications where the risk of contamination is the same on both sides.

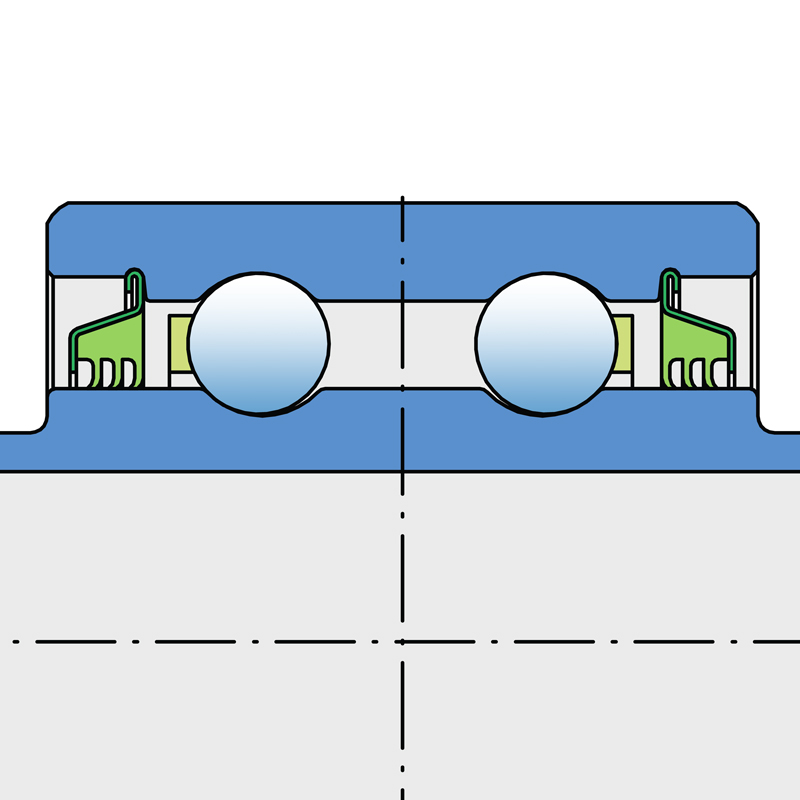

Sealing Drawing
