SEEDING MACHINE
205KRP2
Ball Bearing
Application: Seeding Machine

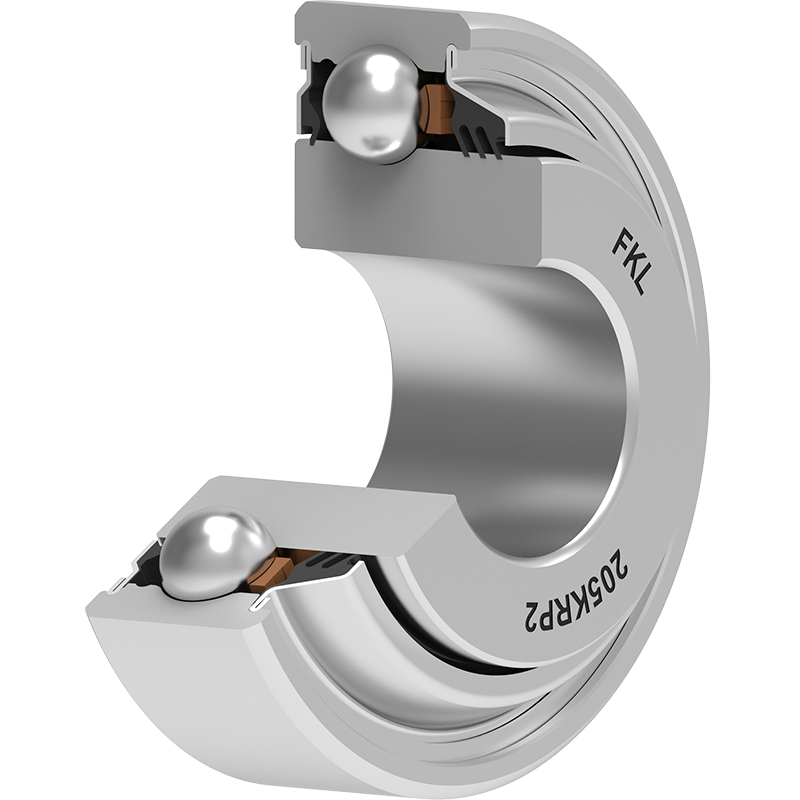

3D view
| Cdyn | Dynamic load rating | 14 | kN |
| Co | Static load rating | 7.8 | kN |
| D | Outside diameter | 52 | mm |
| d | Bore diameter | 19.202 | mm |
| C | D-shape hole cut out dimension | 15 | mm |
| kg | Mass | 0.28 | kg |
| B | Width inner ring | 21.1 | mm |

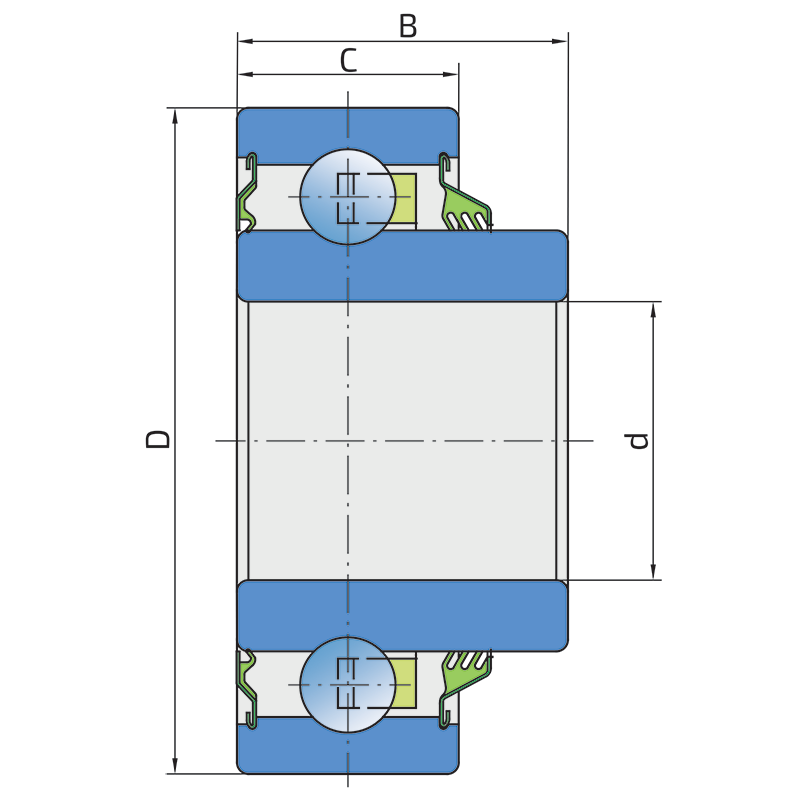

Tehnical Drawing
Sealing
S SEAL / T SEAL
S seal on the base side and 3-lip seal on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration.
Sealing Drawing
