SEEDING MACHINE
3204 T
Double Row Angular Contact Ball Bearing
Application: Seeding Machine

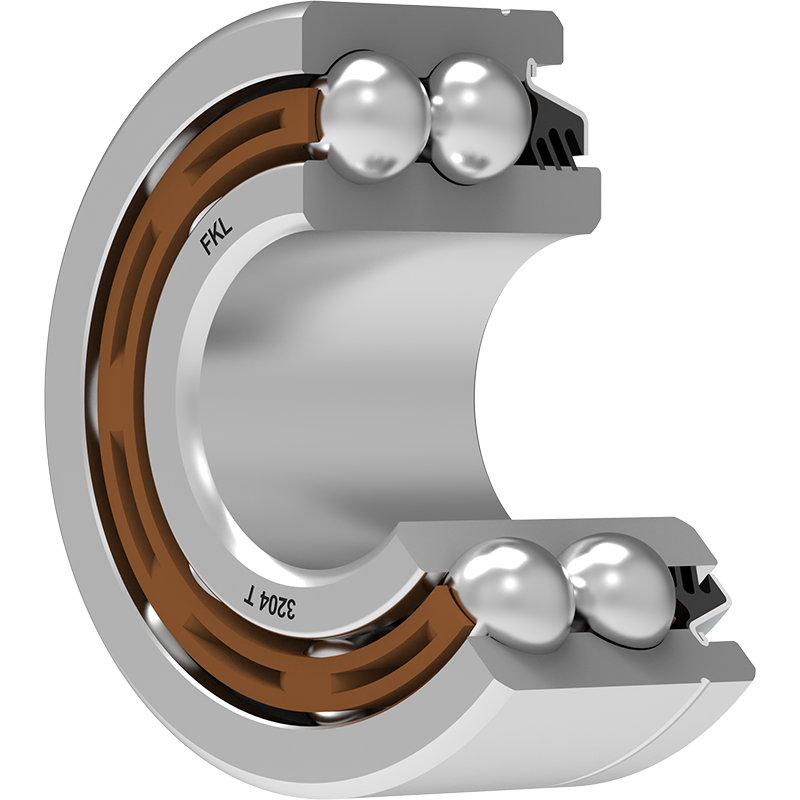

3D view
| Cdyn | Dynamic load rating | 18.8 | kN |
| Co | Static load rating | 12.6 | kN |
| D | Outside diameter | 47 | mm |
| d | Bore diameter | 20 | mm |
| C | D-shape hole cut out dimension | 22 | mm |
| kg | Mass | 0.185 | kg |
| B | Width inner ring | 25.2 | mm |
| α | Contact angle | 25 | ° |

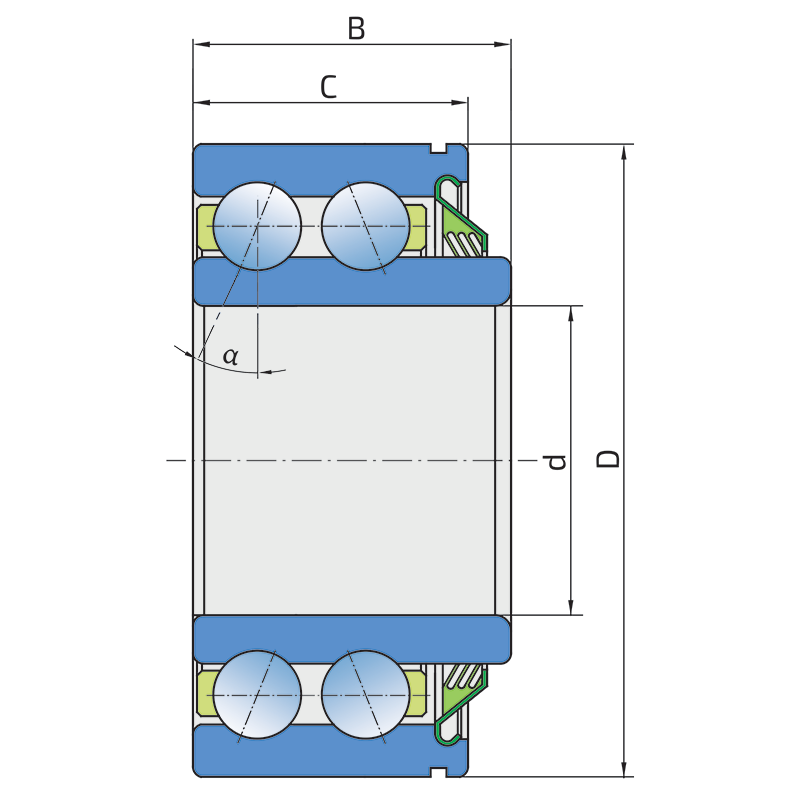

Tehnical Drawing
Sealing
T SEAL ON ONE SIDE (T)
3-lip seal on the front side which is exposed to contaminants, while the base side is open to the lubricant.
Sealing Drawing
