DISC HARROW

GW 211PPB20

Round Bore Series With Spherical Outer Ring – Relubricable Type

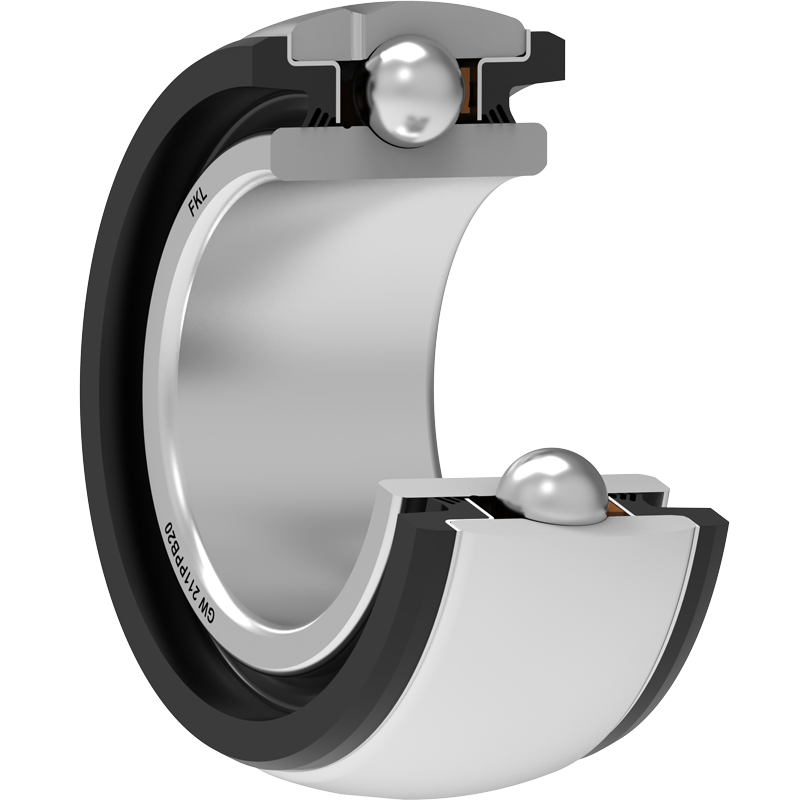

3D view

Technical Specification
dBore diameter2.1878inch
dBore diameter55.7mm
DOutside diameter3.937inch
DOutside diameter 100mm
BWidth inner ring1.563inch
BWidth inner ring 39.7mm
CWidth outer ring1.323inch
C Width outer ring 33.6mm
d1Outer diameter inner ring2.72inch
d1Outer diameter inner ring 69.1mm
EDistance from raceway centre to the hole for lubrication0.28inch
EDistance from raceway centre to the hole for lubrication 7.1mm
CdynDynamic load rating42.5kN
CoStatic load rating29kN
kgMass1.03kg

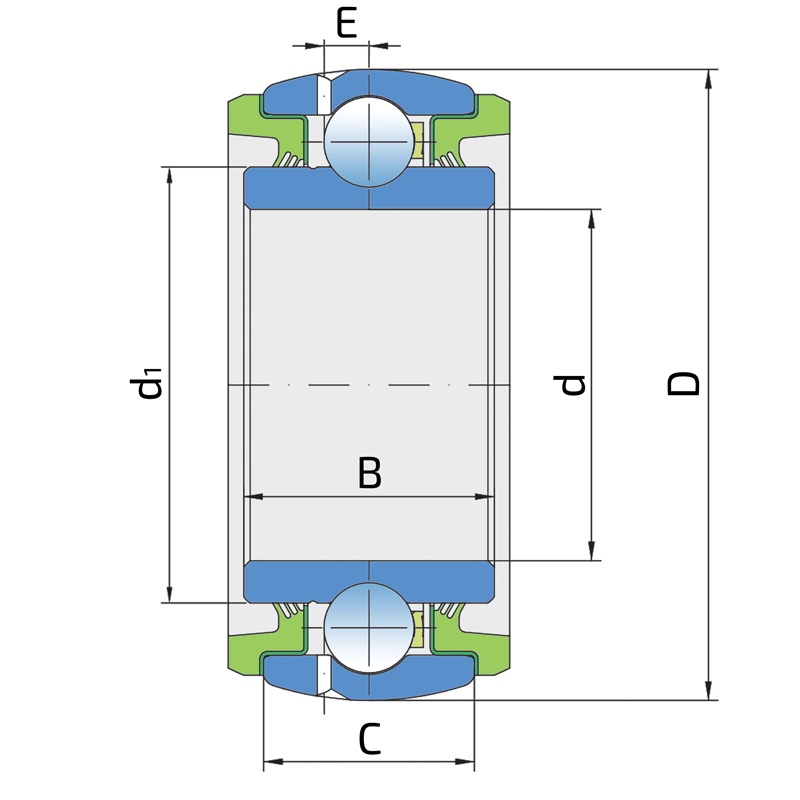

Tehnical Drawing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

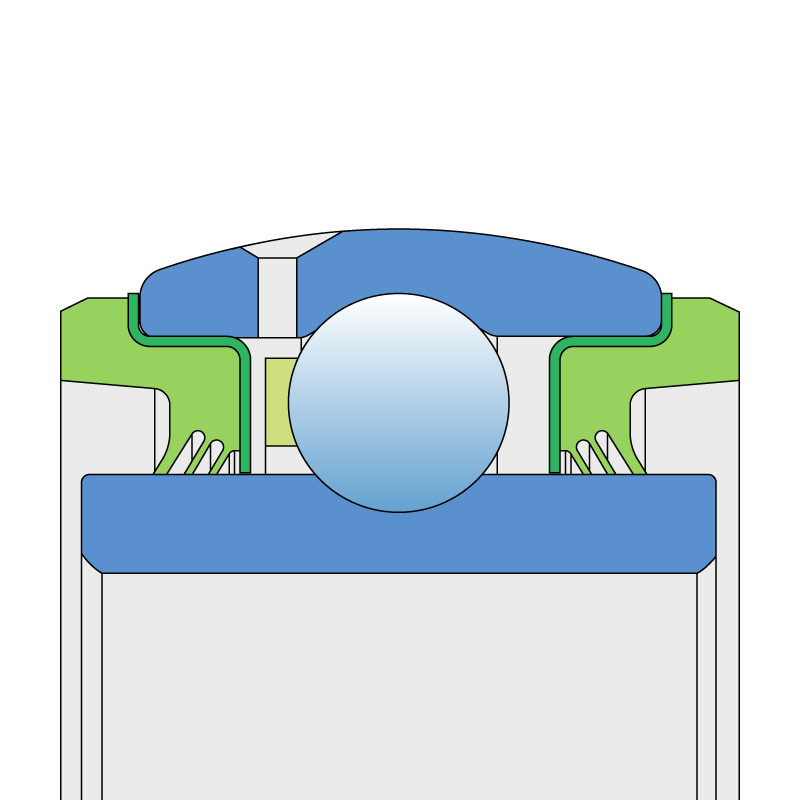

Sealing Drawing

GW 211PPB20

×

GW 211PPB20

×

Sealing Type:

3-lip seal on the both side of the bearing, provides equal protection against contamination.

GW 211PPB20

×
