DISC HARROW
GWST 211-40.5 2TD
Bearing Unit
Application: Shallow stubble cultivator
3D view
| a | Shaft size | 40.5 | mm |
| d | Bore diameter | 43 | mm |
| B | Width inner ring | 52 | mm |
| C | Width outer ring | 34 | mm |
| Da | Centering diameter | 114 | mm |
| D | Outside diameter | 192 | mm |
| A | Overall housing width | 48 | mm |
| A1 | Housing flange thickness | 5 | mm |
| J | Pitch circle diameter | 140 | mm |
| N | Length of attachment bolt square hole | 15.2 | mm |
| kg | Mass | 3.23 | kg |
| Cdyn | Dynamic load rating | 43.5 | kN |
| Co | Static load rating | 29 | kN |
| Pu | Fatigue load limit | 1.22 | kN |

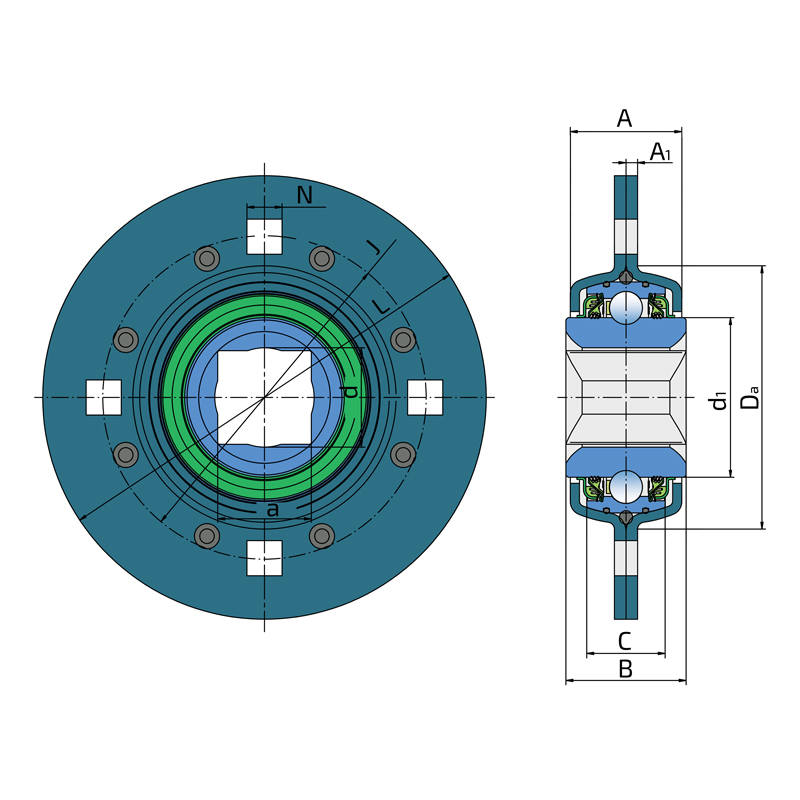

Tehnical Drawing
Sealing
DOUBLE T SEAL / DOUBLE T SEAL
Double 3-lip seal on both sides.
The seals on both sides provide effective protection against contaminant penetration.

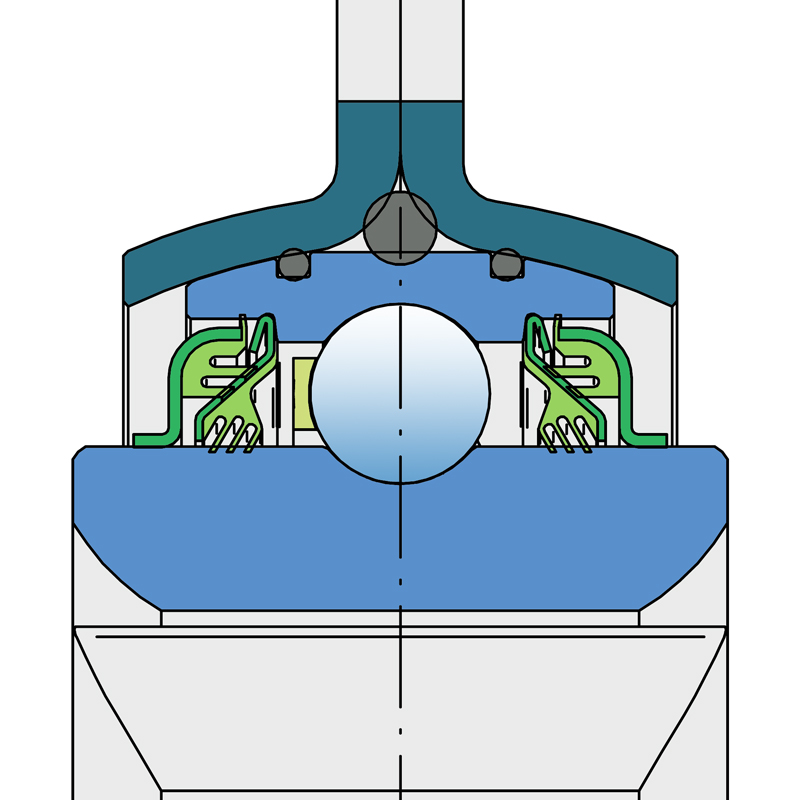

Sealing Drawing
