DISC HARROW
GWHGR 211PP202
Trunnion Bearing Units
Application: Disc Harrow
3D view
| Cdyn | Dynamic load rating | 43.5 | kN |
| Co | Static load rating | 29 | kN |
| D | Outside diameter | 129.5 | mm |
| d | Bore diameter | 51.308 | mm |
| d1 | Bearing housing sleeve diameter | 37 | mm |
| kg | Mass | 4.8 | kg |
| H | Housing height | 202.5 | mm |
| B | Width inner ring | 60.3 | mm |
| A | Overall width | 57 | mm |

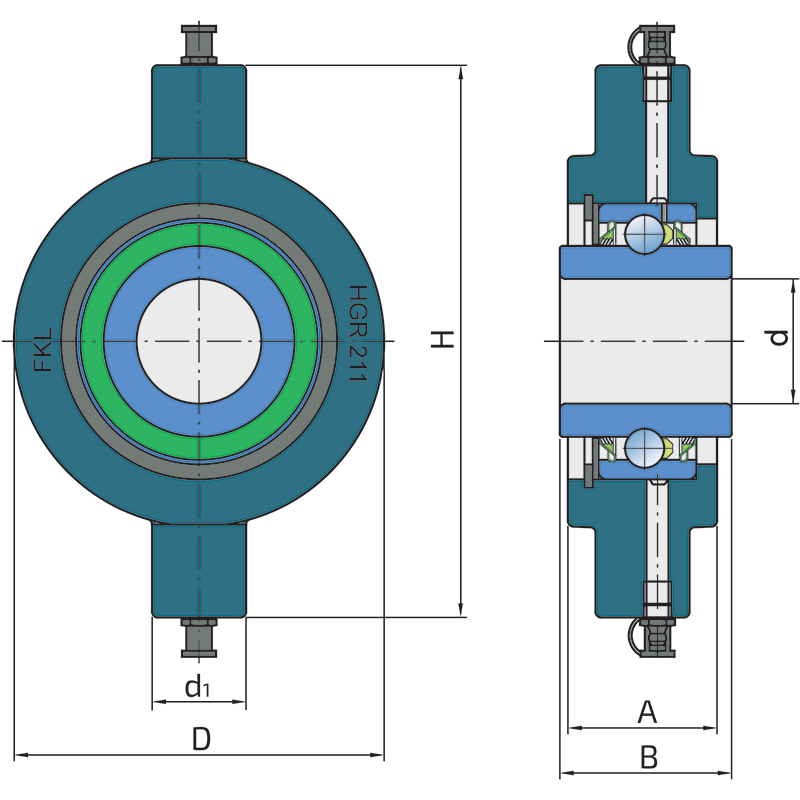

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

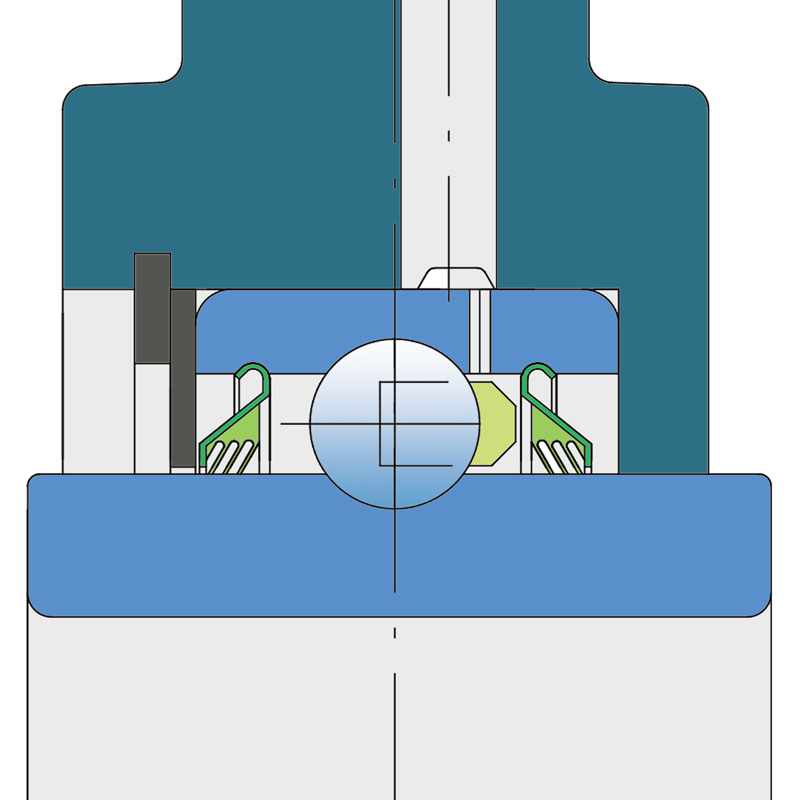

Sealing Drawing
