DISC HARROW
GWST 209PPB13
Round Series
Application: Vertical tillage, sugar cane harvester, disc ripper and disc harrow

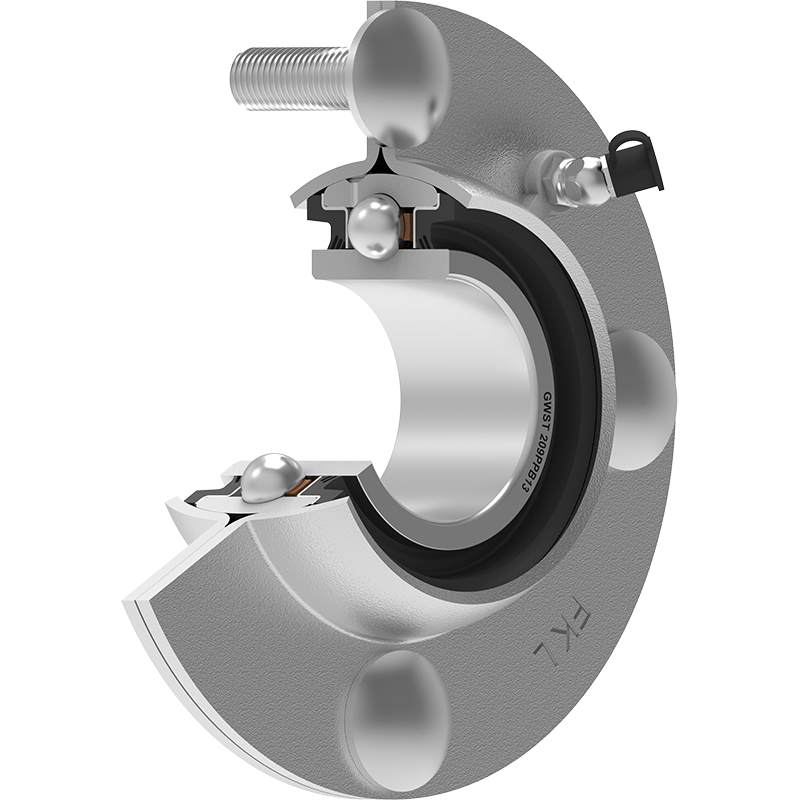

3D view
| d | Bore diameter | 1.781 | inch |
| d | Bore diameter | 45.24 | mm |
| B | Width inner ring | 36.53 | mm |
| A | Overall width | 48.5 | mm |
| A1 | Width of the top of the housing | 3.5 | mm |
| C | Width outer ring | 30.1 | mm |
| Da | Centering diameter | 93 | mm |
| D | Outside diameter | 150 | mm |
| J | Pitch circle diameter | 120.5 | mm |
| N | Length of attachment bolt square hole | 13.5 | mm |
| kg | Mass | 1.836 | kg |
| Cdyn | Dynamic load rating | 32.5 | kN |
| Co | Static load rating | 20.4 | kN |
| Pu | Fatigue load limit | 0.857 | kN |

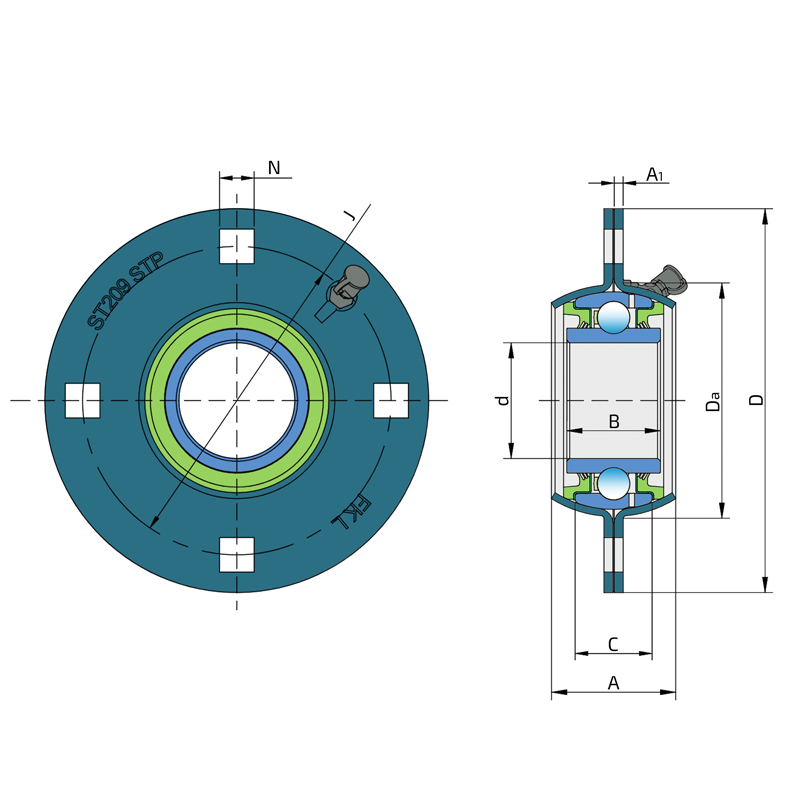

Tehnical Drawing
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

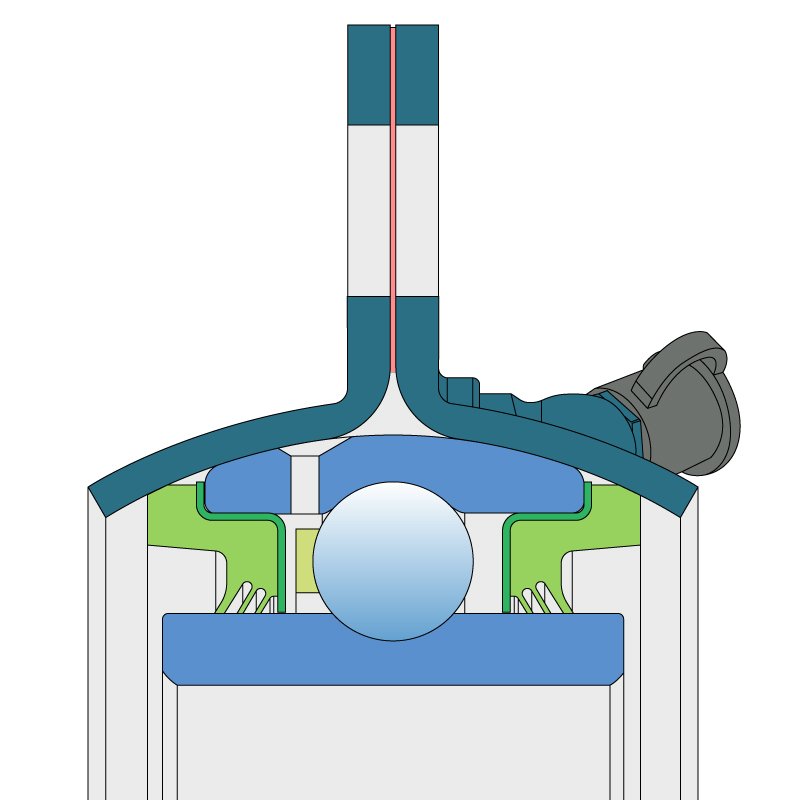

Sealing Drawing
