DISC HARROW
357234A
Double Row Angular Contact Ball Bearing
Application: Disc Harrow

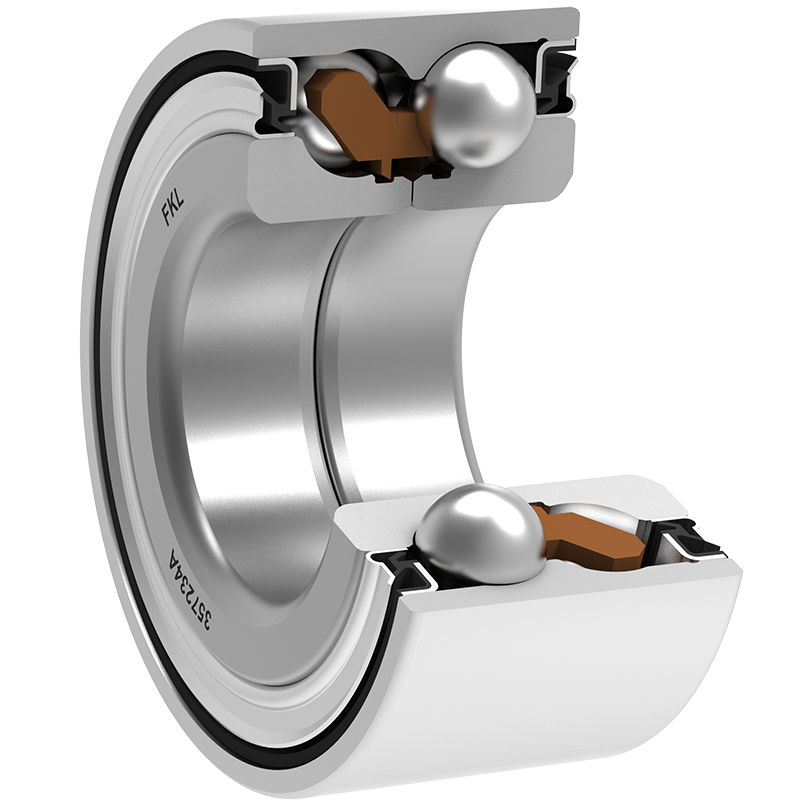

3D view
| d | Bore diameter | 35 | mm |
| D | Outside diameter | 72 | mm |
| B | Width inner ring | 34 | mm |
| α | Contact angle | 40 | ° |
| kg | Mass | 0.539 | kg |
| Cdyn | Dynamic load rating | 47.4 | kN |
| Co | Static load rating | 38.3 | kN |
| Pu | Fatigue load limit | 1.609 | kN |
Tehnical Drawing
Sealing
CASSETTE SEAL / CASSETTE SEAL
Cassette seal on the both side. This sealing provides excellent protection from contamination and low friction. Therefore, bearings with this type of sealing can be used for high speed applications.
Sealing Drawing
