XS 5203.B-2T
Double Row Angular Contact Ball Bearing
Application: Seeding Machine
![](img/products/XS-5203.B-2T.png)
![](img/image.png)
3D view
![](img/3D/XS-5203.B-2T.png)
d | Bore diameter | 16.26 | mm |
D | Outside diameter | 45.23 | mm |
B | Width inner ring | 27.66 | mm |
C | Width outer ring | 22.8 | mm |
kg | Mass | 0.18 | kg |
Cdyn | Dynamic load rating | 14.21 | kN |
Co | Static load rating | 8.8 | kN |
Pu | Fatigue load limit | 0.3696 | kN |
α | Contact angle | 30 | ° |

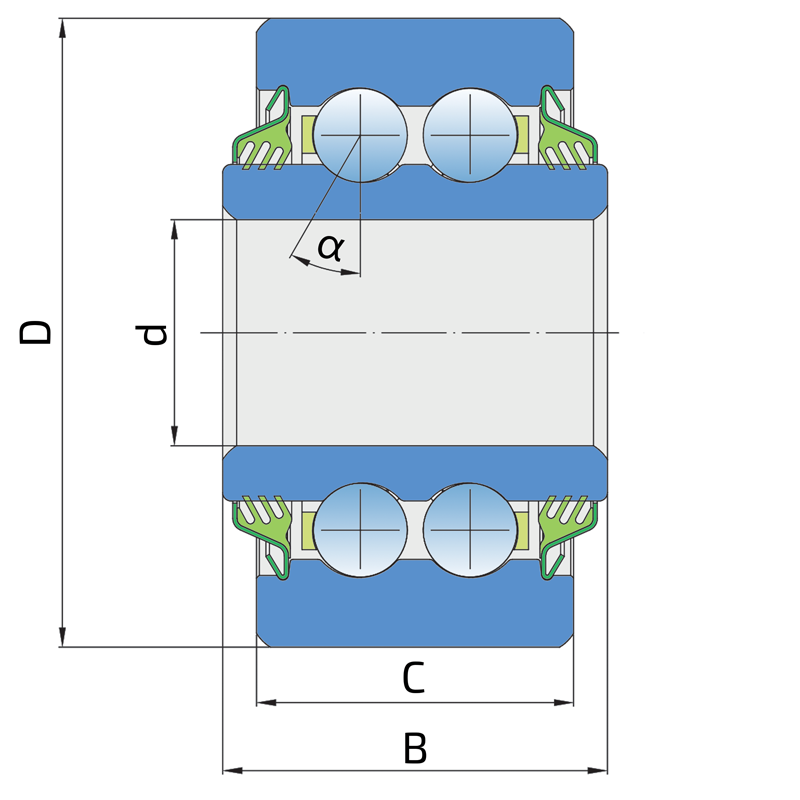

Tehnical Drawing
![](img/Drawings/XS-5203-B-2T.png)
Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Sealing Drawing
![](img/seal_hub/XS-5203-B-2T.jpg?16032024)
