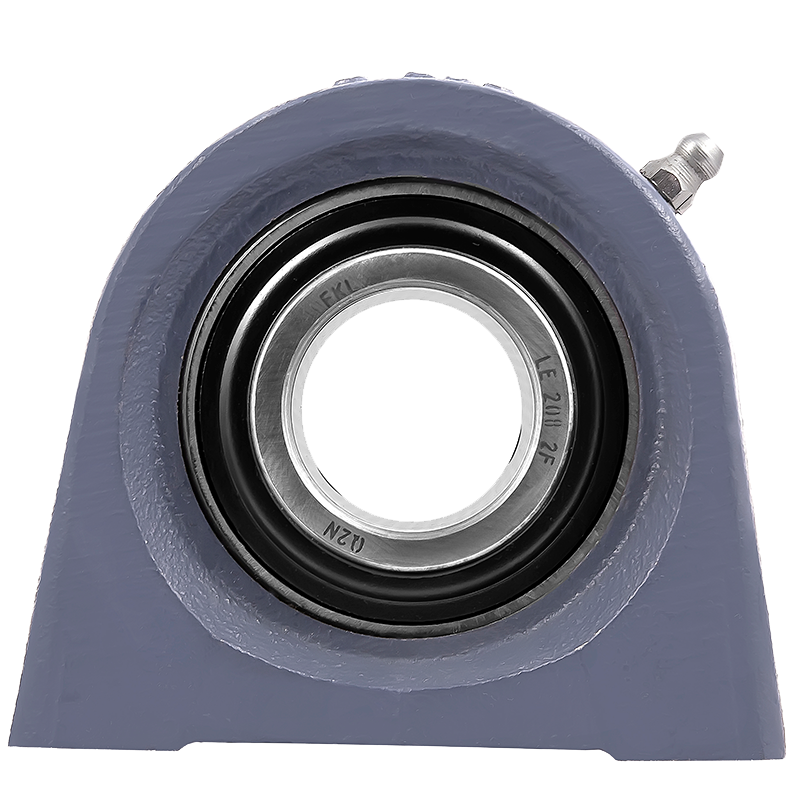

LEU 208 2F

Y-Bearing Plummer Block Units With Grey Cast Iron Housing "U"

3D view

Technical Specification
dBore diameter40mm
LOverall length 116mm
AHousing contact surface width48mm
A1Width of the top of the housing30mm
HHousing height98.2mm
H1Distance from the contact surface to the bearing axis49.2mm
JPitch circle diameter88.9mm
GThreadM13mm
G1Thread length20mm
s1Distance from locking device side face to raceway centre 30.2mm
kgMass1.67kg
CdynDynamic load rating30.7kN
CoStatic load rating19kN
PuFatigue load limit0.8kN

Tehnical Drawing

Sealing

F SEAL / F SEAL (2F)

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal; then the sealing S type, with the labyrinth between the sheet part and the rubber lip that conducts the contact sealing. The friction and speeds are the same as with S but has much better protection against rough impurity particles. It is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides the contact sealing that prevents the penetration of the finer impurities, water, moisture, steam etc. Suitable for heavier conditions due to better protection against foreign matters. It is used with the Y bearings (standard).

Sealing Drawing

LEU 208 2F

×

LEU 208 2F

×

Sealing Type:

Dual sealing, protection cover placed on the inner ring protects against rough impurity particles and makes the labyrinth with the sheet part of the seal

LEU 208 2F

×
