IL60-140/5T-B37

Maintenance-Free Bearing With Integrated Flange For Harsh Tillage

Application: Disc cultivators

3D view

Technical Specification
JPitch circle diameter140mm
DOutside diameter 160mm
H/THole/Thread5xM12x1.25mm
d1Bore diameter 37mm
LTotal length53.4mm
L2Bearing width45mm
CdynDynamic load rating66.35kN
CoStatic load rating56.49kN
PuFatigue load limit2.37kN

Tehnical Drawing

Sealing

O-RING + S SEAL / DIRTBLOCK SEAL + METAL SHIELD

O-ring and S seal on the base side and Dirtblock seal with Metal shield on the front side which is exposed to contaminants.

O-ring and S seal together with attached special disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.

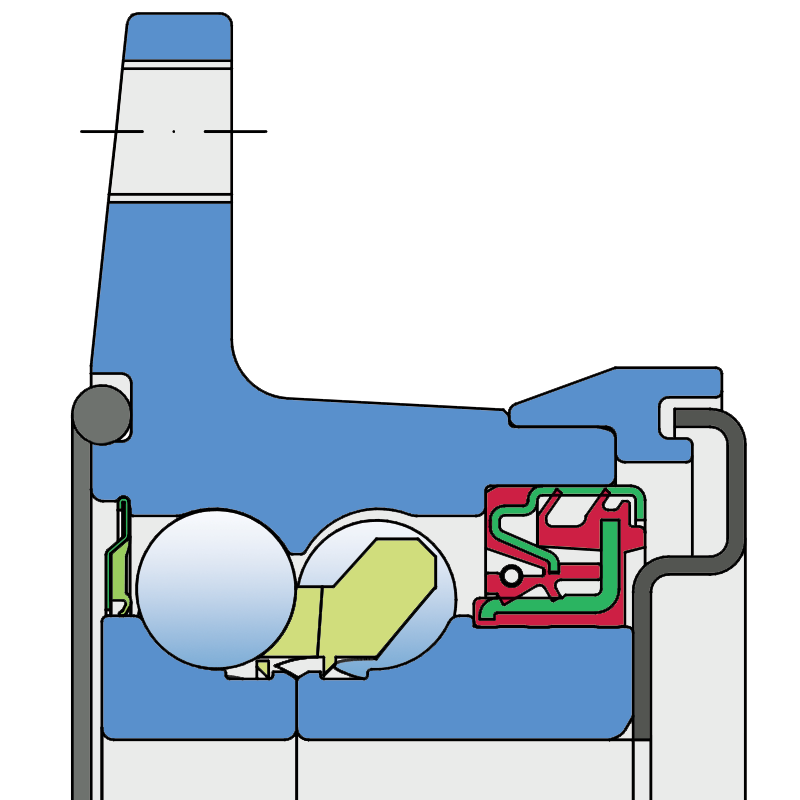

Sealing Drawing

IL60-140/5T-B37

×

IL60-140/5T-B37

×

Sealing Type:

O-ring and S seal on the base side and Dirtblock seal with Metal shield on the front side which is exposed to contaminants.
