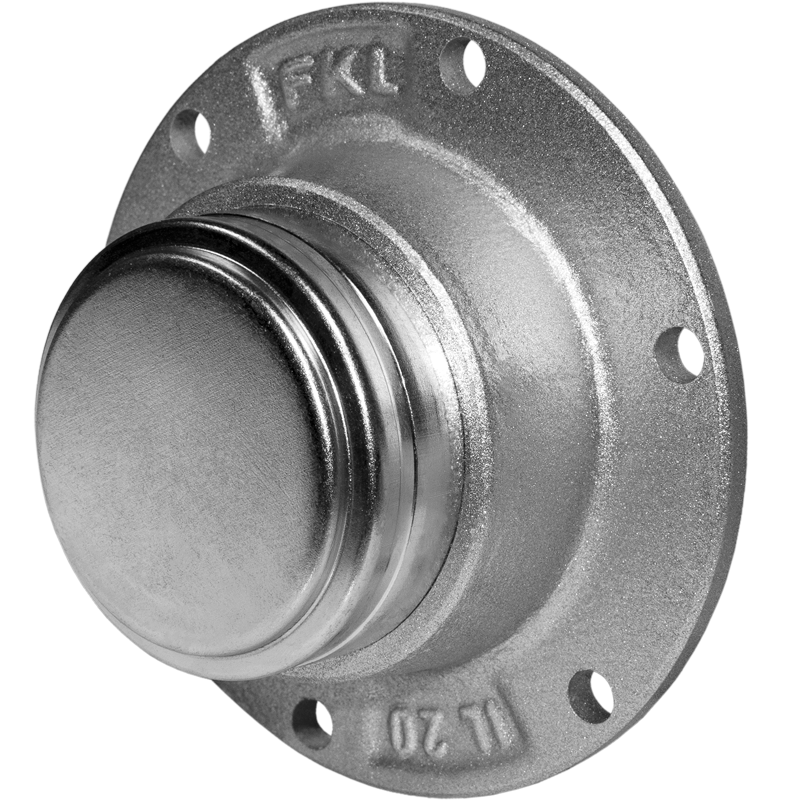

IL20-85/6H-B20

The Bearing Solution For Seeding Machines, Integrated Flange

Application: Disc openers on the seed drill (pneumatic and mechanical)

3D view

Technical Specification
JPitch circle diameter85mm
DOutside diameter 95mm
H/THole/Thread6x6.4mm
d1Bore diameter 20mm
LTotal length37.7mm
L1Total flange length24mm
L2Bearing width18mm
kgMass0.48kg
CdynDynamic load rating22kN
CoStatic load rating15.2kN
PuFatigue load limit0.64kN

Tehnical Drawing

Sealing

T SEAL / S SEAL+METAL PROTECTIVE CAP

3-lip seal on the base side and the S seal with Metal protective cap on the front side.

3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.

S seal with a Metal protective cap on the front side eliminates bearing contaminants.

Sealing Drawing

IL20-85/6H-B20

×

IL20-85/6H-B20

×

Sealing Type:

3-lip seal on the base side and the S seal with Metal protective cap on the front side.
