IL50V-104/4T-B30

Maintenance-Free Bearing With Integrated Flange For Harsh Working Environments

Application: Rapid seed drills, pneumatic seed drills and disc cultivators

3D view

Technical Specification
JPitch circle diameter104mm
DOutside diameter 145mm
H/THole/Thread4xM12x1.25mm
d1Bore diameter 30mm
LTotal length41.8mm
L2Bearing width39mm
CdynDynamic load rating47.4kN
CoStatic load rating38.3kN
PuFatigue load limit1.61kN

Tehnical Drawing

Sealing

CASSETTE SEAL / DOUBLE CASSETTE SEAL + METAL SHIELD

Cassette seal on the base side and double cassette seal with metal shield on the front side. This sealing provides excellent protection from contamination and low friction.

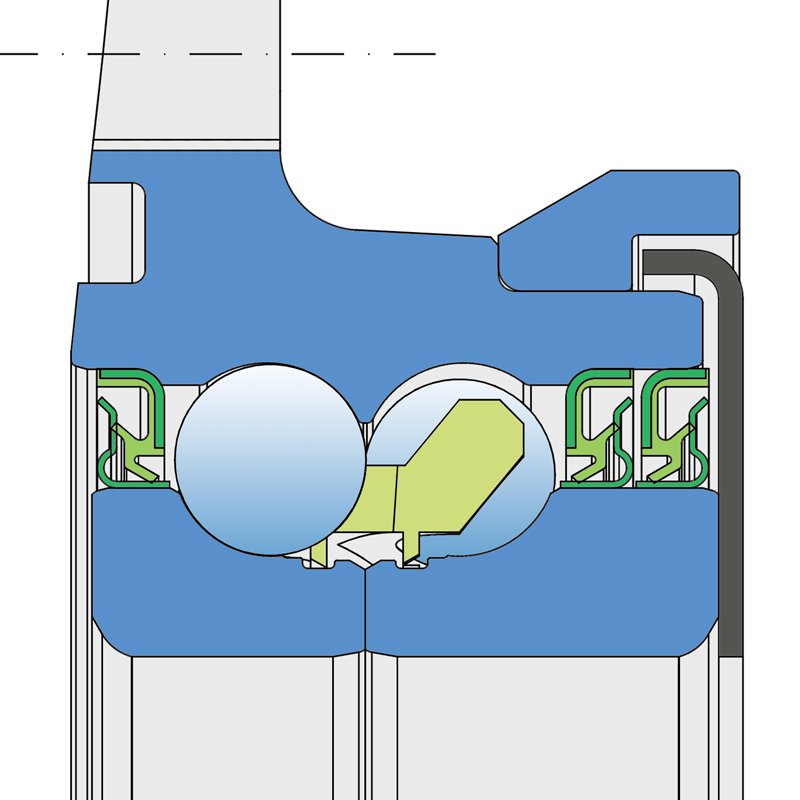

Sealing Drawing

IL50V-104/4T-B30

×

IL50V-104/4T-B30

×

Sealing Type:

Cassette seal on the base side and double cassette seal with metal shield on the front side.

IL50V-104/4T-B30

×
